2 1/2 " Goyen Pulse Jet Valve Stainless Steel Diaphragm Valves CA62MM AC230V 50Hz / 60Hz

  • 1
  • 2
  • 3

Brand Name : Goyen or OEM

Model Number : CA62MM

Certification : CE ISO9001

Place of Origin : China

MOQ : 5 pieces

Price : USD65 -96 Per piece

Payment Terms : Western Union, T/T, L/C,Paypal,Credit card

Supply Ability : 1000 pieces per 10 working days

Delivery Time : 5

Packaging Details : Plastic bags, boxes, cartons, Pallets or As customer's requirement

Body : Aluminum

Core and Plugnut : Stainless steel

Core Spring : Stainless steel

Working Pressure : 0.35-0.85Mpa

Sealing & disc : CR (chloroprene)

Diaphragm : NBR(nitrile/buna-n) or Viton

Diaphragm Seat : PA-6 (standard)

Port size : 2 1/2 "

Contact Now



Goyen Cast Aluminum diaphragm valve CA62MM 2 1/2 " AC230V 50/60Hz  pulse jet valve





Description
High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.

The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof
    and explosionproof solenoids for use in potentially explo- sive atmospheres (gas & dust) according
    to Directive ATEX 94/9/EC can be mounted on the same basic valve



Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

Constuction Material:



Body  Aluminium (diecast)
Ferrule 304 SS
Armature  430FR SS
Seals  Nitrile or Viton (reinforced)
Spring 304 SS
Screws  302 SS
Clip Mild  steel  (plated)
Locknut Mild  steel  zinc passivated
Voltage DC: 24V, AC: 24V,48V,110V,230V
Working Temperature -  20 to + 85 ℃
Protection Class IP65
Coil Insulation Class F
Working Pressure 0.35-0.85Mpa
Diaphragm Seat   PA-6 or Viton  coated mild steel or High Density PE
Sealing & disc CR (chloroprene)
Diaphragm NBR(nitrile/buna-n) or Viton
Shading coil Copper
Connector DIN43650A





INSTAllATION:



1 The valves can be mounted in any position without affecting operation
2 Threaded pipe connection is: G = G (ISO 228/1) or compression fittings
3 Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
4   Apply moderate pressure to system and check for installation leaks.
5  For compression fitting types tightness is achieved by the compressed gasket on the blow tube
6  Other pipe threads are available on request
7  Installation/maintenance instructions are included with each valve
8 Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
9  Fully pressurise system.
10  Test fire and listen for proper actuation and crisp pulse noise.



Maintenance:
Before conducting any maintenance activity on the system ensure that components are fully isolated from
pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.
Diaphragm and pilot inspection should be conducted annually

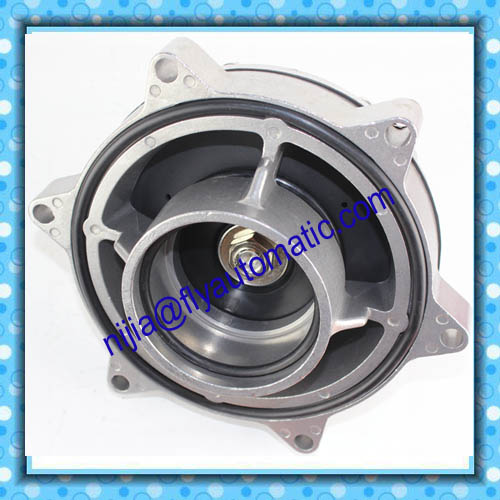

Product show:

2 1/2 " Goyen Pulse Jet Valve Stainless Steel Diaphragm Valves CA62MM AC230V 50Hz / 60Hz2 1/2 " Goyen Pulse Jet Valve Stainless Steel Diaphragm Valves CA62MM AC230V 50Hz / 60Hz









Fitted Repair kits code: Diaphragm K5000 / K5004(Vition)
